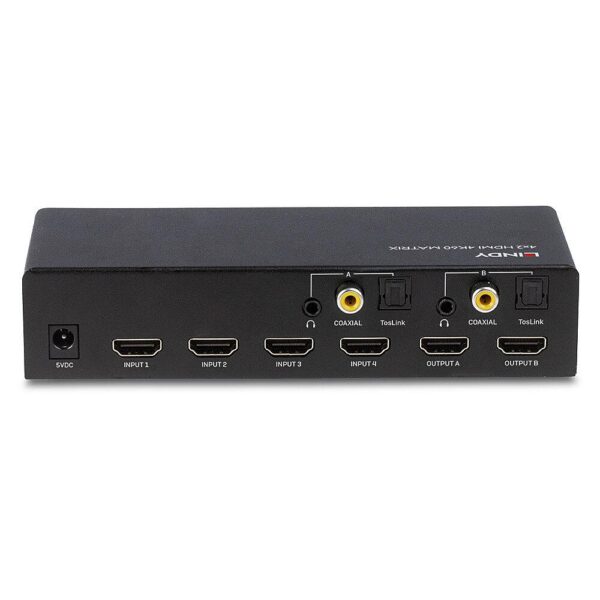

Switch video Lindy 4×2 HDMI 2.0 18G Matrix

Switch video Lindy 4×2 HDMI 2.0 18G Matrix Description Switches between 4 HDMI source devices and 2 HDMI displays connected simultaneously Supports resolutions up to 4K 60Hz, with additional support for HDR Extract audio from HDMI to Toslink (Optical) and 3.5mm audio Supports ARC as well as a Downscaler-Function via HDMI Out B Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0 Supported Bandwidth: 18Gbps Maximum Resolution: 3840×2160@60Hz 4:4:4 8bit HDCP Support: 2.2 Supported Audio: HDMI Audio Pass-through Toslink (Optical) Up to 5.1CH Stereo Analogue IR Support: 38kHz CEC Support: – Serial Interface: – LED / LCD Display: – Control: Push Button, IR Special Features: EDID Management, ARC Support, 4K – 1080p Downscaling Functionality, Dual Audio Extraction   Connectors Input: 4 x HDMI (Female) Output: 2 x HDMI (Female) 2 x 3.5mm (Female) 2 x Coaxial (Female) 2 x TOosLink (Optical) (Female) Control: – Power: 3.5/1.35mm   Physical Properties Dimensions (approx.) WxDxH: 210x66x26.5mm (8.27×2.6×1.04in) Housing Material: Metal Net Weight: 0.348kg (0.77lb) Operating Temperature: 0°C – 70°C (32°F – 158°F) Storage Temperature: -10°C – 80°C (14°F – 176°F) Humidity: 5 – 90% RH (non-condensing) Power Requirements: 5VDC 2A Colour: Black   Miscellaneous Packaging Type: Carton box Packaging Dimensions: 243x60x196mm (9.57×2.36×7.72in) Gross Weight: 0.636kg (1.4lb) SKU: LY-38084 Categorie: Media convertoare
